LAKE OF THE WOODS WESTERN OUTLET AT NORMAN DAM AND POWERHOUSE
Nelson

---

PointID:	4424
Code:	05PE011
Latitude (decimal degrees):	49.77
Longitude (decimal degrees):	-94.52
Drainage Area (km2):
Source:	Hydat
Hydrological Zone:	Nelson
Name:	LAKE OF THE WOODS WESTERN OUTLET AT NORMAN DAM AND POWERHOUSE

---

Field Definitions

Download
Site Descriptor Information	Site Time Series Data
Link to all available data

---

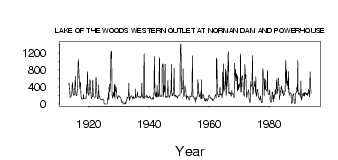

Site Time Series Plot:

---

Site Data File:
(Units: m³/s)

ID	Year	Jan	Feb	Mar	Apr	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec
4424	1913					453.00	491.00	367.00	377.00	314.00	156.00	157.00	157.00
4424	1914	157.00	168.00	221.00	225.00	302.00	464.00	510.00	436.00	305.00	255.00	212.00	210.00
4424	1915	216.00	217.00	212.00	343.00	459.00	505.00	655.00	518.00	290.00	206.00	195.00	197.00
4424	1916	198.00	314.00	362.00	454.00	820.00	993.00	1040.00	921.00	737.00	626.00	485.00	402.00
4424	1917	360.00	461.00	510.00	493.00	277.00	185.00	123.00	140.00	136.00	126.00	122.00	121.00
4424	1918	116.00	120.00	232.00	142.00	123.00	130.00	135.00	139.00	143.00	136.00	134.00	129.00
4424	1919	131.00	133.00	333.00	433.00	248.00	257.00	757.00	705.00	471.00	399.00	256.00	204.00
4424	1920	213.00	281.00	413.00	473.00	578.00	540.00	495.00	323.00	251.00	170.00	134.00	133.00
4424	1921	169.00	167.00	175.00	524.00	561.00	339.00	235.00	194.00	178.00	171.00	165.00	155.00
4424	1922	158.00	161.00	159.00	387.00	629.00	615.00	402.00	343.00	262.00	163.00	133.00	126.00
4424	1923	128.00	124.00	268.00	454.00	289.00	184.00	195.00	174.00	148.00	128.00	124.00	117.00
4424	1924	111.00	106.00	103.00	106.00	104.00	111.00	117.00	118.00	116.00	106.00	98.00	99.00
4424	1925	76.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
4424	1926	0.00	0.00	43.00	125.00	147.00	128.00	272.00	140.00	98.70	403.00	464.00	292.00
4424	1927	297.00	380.00	416.00	659.00	1140.00	1240.00	1230.00	866.00	282.00	136.00	167.00	175.00
4424	1928	172.00	225.00	253.00	277.00	184.00	307.00	466.00	174.00	134.00	449.00	390.00	317.00
4424	1929	293.00	314.00	392.00	291.00	189.00	141.00	119.00	151.00	185.00	180.00	192.00	180.00
4424	1930	191.00	185.00	177.00	179.00	160.00	151.00	147.00	148.00	131.00	99.90	83.00	91.00
4424	1931	33.00	35.00	36.00	61.00	11.80	1.70	1.70	1.70	1.70	1.70	1.00	25.00
4424	1932	34.00	21.00	1.00	14.00	57.50	46.20	80.60	74.30	112.00	162.00	153.00	135.00
4424	1933	138.00	164.00	280.00	493.00	245.00	85.40	103.00	153.00	139.00	132.00	157.00	174.00
4424	1934	186.00	179.00	199.00	178.00	180.00	153.00	142.00	127.00	117.00	163.00	158.00	173.00
4424	1935	136.00	126.00	141.00	150.00	154.00	147.00	351.00	158.00	160.00	156.00	154.00	167.00
4424	1936	196.00	250.00	286.00	179.00	175.00	178.00	165.00	177.00	163.00	170.00	163.00	173.00
4424	1937	147.00	145.00	153.00	180.00	167.00	165.00	302.00	489.00	262.00	189.00	182.00	192.00
4424	1938	148.00	133.00	134.00	166.00	995.00	1180.00	755.00	133.00	157.00	165.00	170.00	171.00
4424	1939	169.00	161.00	199.00	211.00	179.00	187.00	165.00	165.00	143.00	141.00	162.00	149.00
4424	1940	157.00	155.00	175.00	190.00	187.00	155.00	142.00	128.00	124.00	122.00	126.00	117.00
4424	1941	119.00	128.00	151.00	150.00	141.00	111.00	142.00	186.00	312.00	1120.00	956.00	531.00
4424	1942	318.00	202.00	177.00	176.00	235.00	268.00	174.00	155.00	437.00	189.00	183.00	173.00
4424	1943	177.00	225.00	243.00	184.00	530.00	1090.00	1050.00	238.00	178.00	188.00	189.00	186.00
4424	1944	183.00	194.00	193.00	191.00	169.00	919.00	876.00	940.00	940.00	175.00	252.00	424.00
4424	1945	339.00	289.00	276.00	704.00	937.00	395.00	187.00	152.00	165.00	179.00	190.00	147.00
4424	1946	164.00	178.00	188.00	415.00	565.00	207.00	187.00	180.00	145.00	170.00	194.00	181.00
4424	1947	205.00	263.00	309.00	306.00	299.00	936.00	727.00	284.00	199.00	246.00	201.00	199.00
4424	1948	206.00	216.00	273.00	419.00	848.00	259.00	188.00	203.00	195.00	204.00	207.00	167.00
4424	1949	176.00	187.00	185.00	184.00	170.00	144.00	145.00	157.00	188.00	190.00	200.00	191.00
4424	1950	197.00	212.00	217.00	218.00	1010.00	1320.00	1410.00	1370.00	1050.00	427.00	261.00	377.00
4424	1951	365.00	366.00	356.00	357.00	826.00	554.00	258.00	175.00	179.00	198.00	226.00	365.00
4424	1952	433.00	363.00	359.00	279.00	148.00	116.00	177.00	192.00	175.00	158.00	163.00	182.00
4424	1953	161.00	141.00	137.00	137.00	92.20	95.60	182.00	187.00	186.00	186.00	180.00	169.00
4424	1954	165.00	174.00	258.00	300.00	796.00	1130.00	577.00	176.00	182.00	181.00	177.00	138.00
4424	1955	143.00	147.00	143.00	109.00	104.00	40.60	128.00	151.00	137.00	104.00	146.00	178.00
4424	1956	185.00	319.00	461.00	576.00	386.00	481.00	263.00	228.00	182.00	181.00	171.00	201.00
4424	1957	281.00	234.00	169.00	119.00	143.00	129.00	572.00	173.00	124.00	176.00	202.00	229.00
4424	1958	233.00	200.00	194.00	147.00	143.00	118.00	88.70	73.60	129.00	80.80	72.00	82.00
4424	1959	96.00	122.00	116.00	124.00	75.00	68.70	66.90	99.50	111.00	180.00	180.00	209.00
4424	1960	204.00	196.00	194.00	158.00	149.00	149.00	132.00	144.00	149.00	128.00	122.00	113.00
4424	1961	101.00	100.00	119.00	79.00	82.00	88.00	92.20	115.00	118.00	132.00	146.00	192.00
4424	1962	190.00	222.00	214.00	185.00	148.00	1090.00	641.00	1050.00	618.00	389.00	215.00	237.00
4424	1963	217.00	185.00	171.00	158.00	170.00	211.00	352.00	399.00	214.00	235.00	229.00	233.00
4424	1964	236.00	243.00	195.00	182.00	146.00	269.00	751.00	249.00	422.00	941.00	479.00	298.00
4424	1965	314.00	348.00	412.00	461.00	464.00	824.00	532.00	207.00	209.00	487.00	768.00	409.00
4424	1966	481.00	531.00	661.00	925.00	1200.00	1230.00	772.00	251.00	248.00	266.00	279.00	256.00
4424	1967	242.00	243.00	268.00	205.00	190.00	239.00	321.00	225.00	231.00	246.00	247.00	247.00
4424	1968	247.00	242.00	233.00	161.00	141.00	560.00	957.00	719.00	664.00	629.00	809.00	548.00
4424	1969	558.00	699.00	712.00	578.00	312.00	666.00	333.00	462.00	389.00	343.00	381.00	464.00
4424	1970	471.00	476.00	474.00	388.00	625.00	1180.00	1050.00	276.00	297.00	289.00	461.00	615.00
4424	1971	667.00	657.00	604.00	496.00	284.00	257.00	208.00	230.00	182.00	204.00	923.00	873.00
4424	1972	693.00	592.00	652.00	694.00	396.00	215.00	160.00	161.00	245.00	255.00	272.00	278.00
4424	1973	310.00	334.00	278.00	132.00	85.40	85.90	39.70	31.00	139.00	284.00	530.00	433.00
4424	1974	427.00	437.00	419.00	430.00	752.00	1140.00	896.00	235.00	266.00	309.00	373.00	417.00
4424	1975	418.00	500.00	541.00	476.00	337.00	264.00	636.00	275.00	188.00	181.00	231.00	290.00
4424	1976	337.00	344.00	338.00	300.00	207.00	141.00	139.00	138.00	137.00	108.00	93.00	134.00
4424	1977	177.00	190.00	130.00	45.00	33.20	27.90	27.80	27.70	138.00	609.00	794.00	834.00
4424	1978	648.00	562.00	563.00	442.00	191.00	463.00	597.00	352.00	569.00	349.00	339.00	338.00
4424	1979	328.00	317.00	308.00	350.00	785.00	754.00	367.00	236.00	233.00	226.00	222.00	222.00
4424	1980	242.00	281.00	335.00	264.00	90.30	47.50	46.70	47.20	47.20	48.90	143.00	266.00
4424	1981	285.00	276.00	210.00	126.00	59.30	140.00	218.00	126.00	156.00	192.00	232.00	234.00
4424	1982	348.00	339.00	227.00	219.00	274.00	568.00	358.00	352.00	257.00	332.00	465.00	622.00
4424	1983	587.00	518.00	462.00	385.00	194.00	107.00	193.00	201.00	208.00	255.00	323.00	333.00
4424	1984	411.00	422.00	418.00	289.00	251.00	304.00	328.00	253.00	211.00	191.00	221.00	234.00
4424	1985	235.00	290.00	310.00	286.00	628.00	879.00	1030.00	482.00	589.00	810.00	667.00	441.00
4424	1986	431.00	492.00	541.00	352.00	761.00	521.00	271.00	254.00	206.00	266.00	264.00	263.00
4424	1987	261.00	259.00	257.00	231.00	42.70	35.30	11.00	46.60	39.90	88.40	180.00	226.00
4424	1988	236.00	242.00	169.00	66.00	39.20	16.10	11.00	11.00	100.00	254.00	259.00	264.00
4424	1989	267.00	375.00	397.00	387.00	288.00	624.00	1030.00	368.00	268.00	237.00	220.00	260.00
4424	1990	259.00	239.00	210.00	183.00	156.00	312.00	543.00	230.00	137.00	85.10	129.00	172.00
4424	1991	193.00	213.00	244.00	212.00	191.00	235.00	264.00	268.00	217.00	188.00	216.00	279.00
4424	1992	240.00	238.00	244.00	241.00	214.00	227.00	256.00	241.00	203.00	203.00	250.00	249.00
4424	1993	341.00	335.00	325.00	277.00	170.00	207.00	392.00	755.00	652.00	425.00	290.00	263.00

---

All data provided by Environment Canada is copyright and its use is restricted to non-commercial education and research purposes. Resale of this data is prohibited. Any user of this data is required to give full credit to Environment Canada as the source of the Canadian data. This includes any research leading to a publication.

---
